Parts and Materials

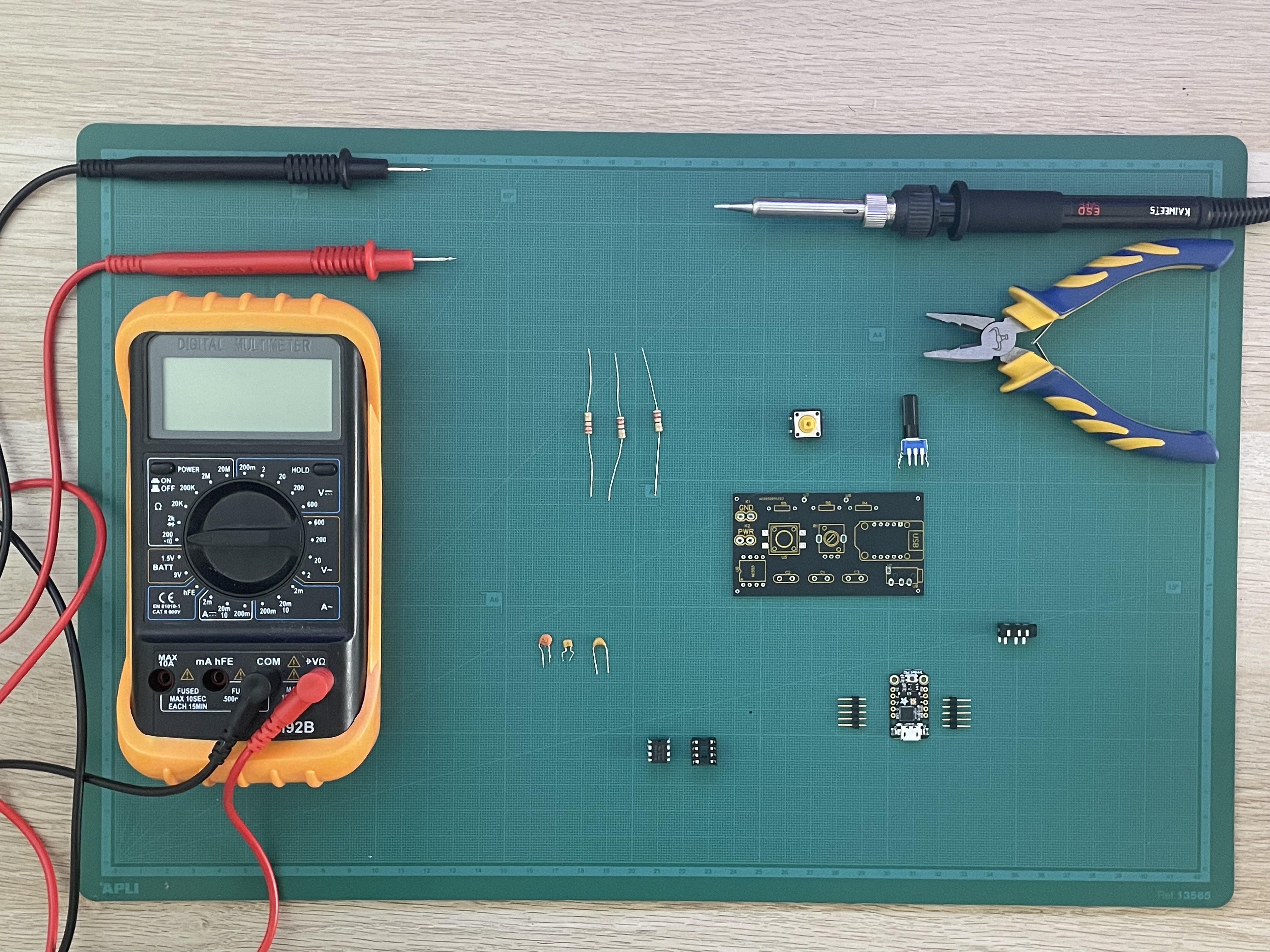

PCB Parts
Below is a list of components needed to assmeble the pcb. It is recommended to source these components locally from a Maker Space/ Fabrication Lab or a local electronics store. You can find the Gerber file for the PCB here.
| Part | Online | Quantity |
|---|---|---|
| Adafruit Trinket M0 | Adafruit | 1 |
| 555 Timer | AMZN_ES / AMZN_US | 1 |
| 220 Ohm Resistor | Adafruit | 3 |
| 1 uF 35V Ceramic Capacitor | AMZN_ES / AMZN_US | 1 |
| 47 uF Ceramic Capacitor | AMZN_ES / AMZN_US | 1 |
| 470 pF Ceramic Capacitor | AMZN_ES / AMZN_US | 1 |
| TRS Connector PJ320A | AMZN_ES / AMZN_US | 1 |
| Tactile Switch | Adafruit | 1 |
| Potentiometer | Diotronic | 1 |
| 0.9mm Copper Coil | AMZN_ES / AMZN_US | 1 |

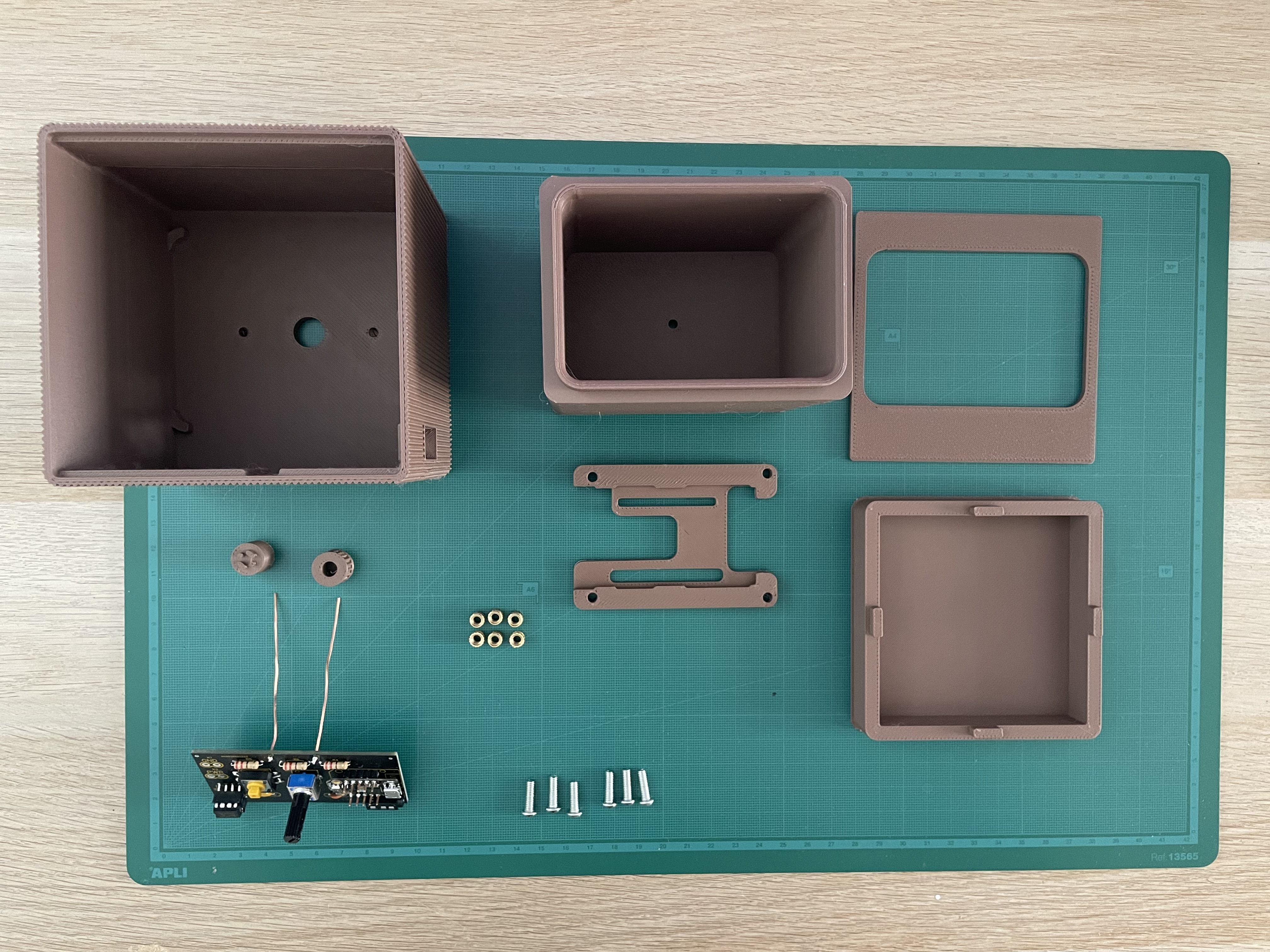

3D Printed Parts & Materials
- Planter
- PCB Bracket
- Hood
- Shell
- Pool
- Button
- Knob
These 3D Design Files can be found here
Below is a list of screws and nuts needed to assemble the 3D parts.
| Part | Online | Quantity |
|---|---|---|
| M4 Screws | Adafruit | 6 |
| M4 Brass Nut Inserts | AMZN_ES / AMZN_US | 6 |
Tools Needed for Assembly
- Soldering Iron
- Solder
- 3D Printer
- Multimeter
